Product type
Suspended baffles, clouds, rafts, grids, discs, and interlocking arrays.
Ceiling system sourcing direction
PET Acoustic Baffles & Clouds
Match linear baffles, clouds, rafts, grids, and sculptural arrays to the ceiling brief.
This page presents a sourcing family. The selected manufacturer confirms final construction, dimensions, suspension, loads, MOQ, price, lead time, and supporting documents. Acoustic, fire, VOC, warranty, and compliance values are Pending verification.
Product direction at a glance
This family covers vertical baffles, horizontal clouds, framed rafts, discs, interlocking grids, and custom-cut sculptural ceiling arrays.
The final type, module family, spacing, color, suspension, and coverage are matched to the reflected ceiling plan.
Material direction
Cut and assembled PET acoustic felt or a matched supplier construction.
Design direction
Linear, wave, cellular, geometric, layered, and sculptural layouts.
Typical applications
Workplace, hospitality, education, healthcare, performance, and public interiors.
Compare arrangement directions

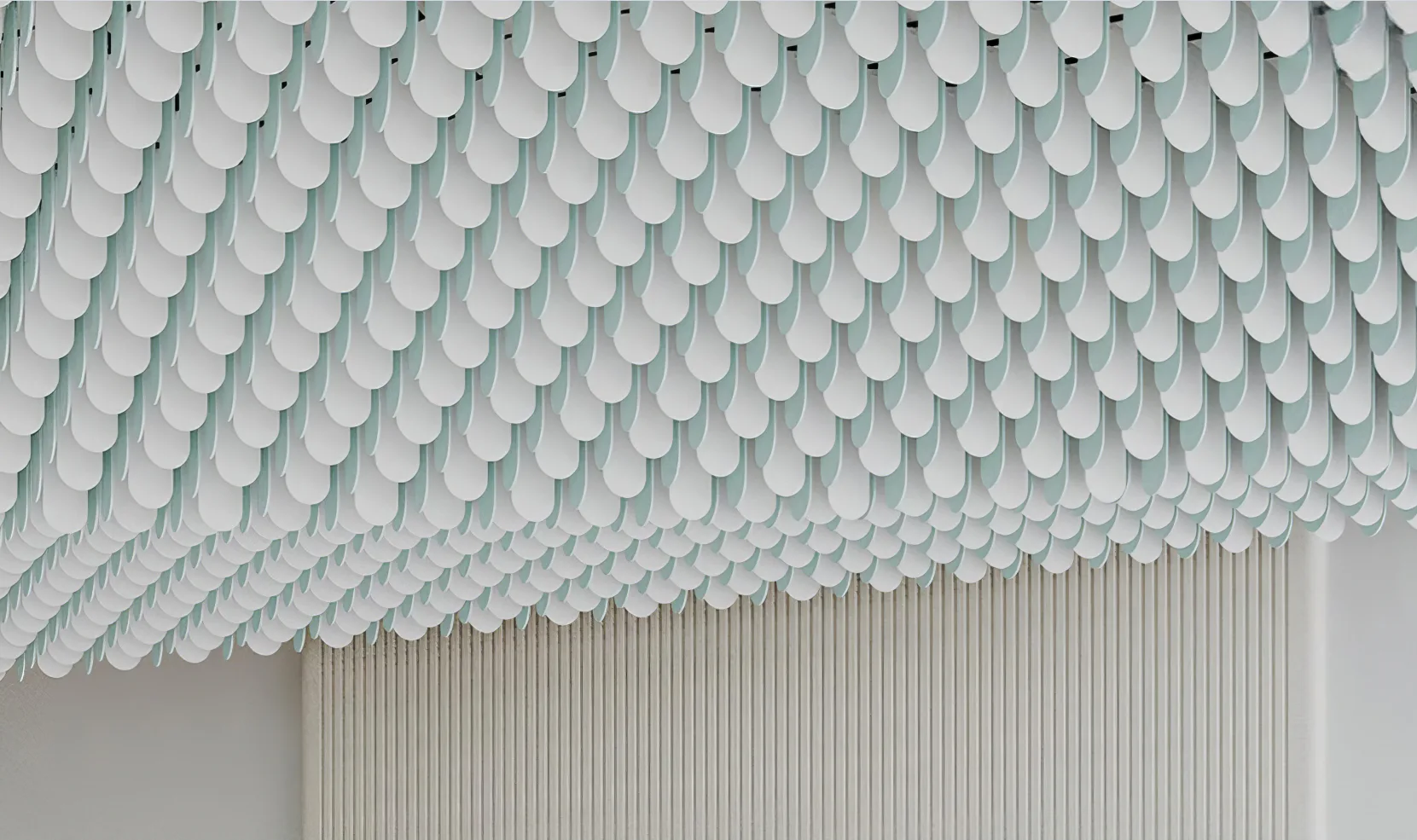

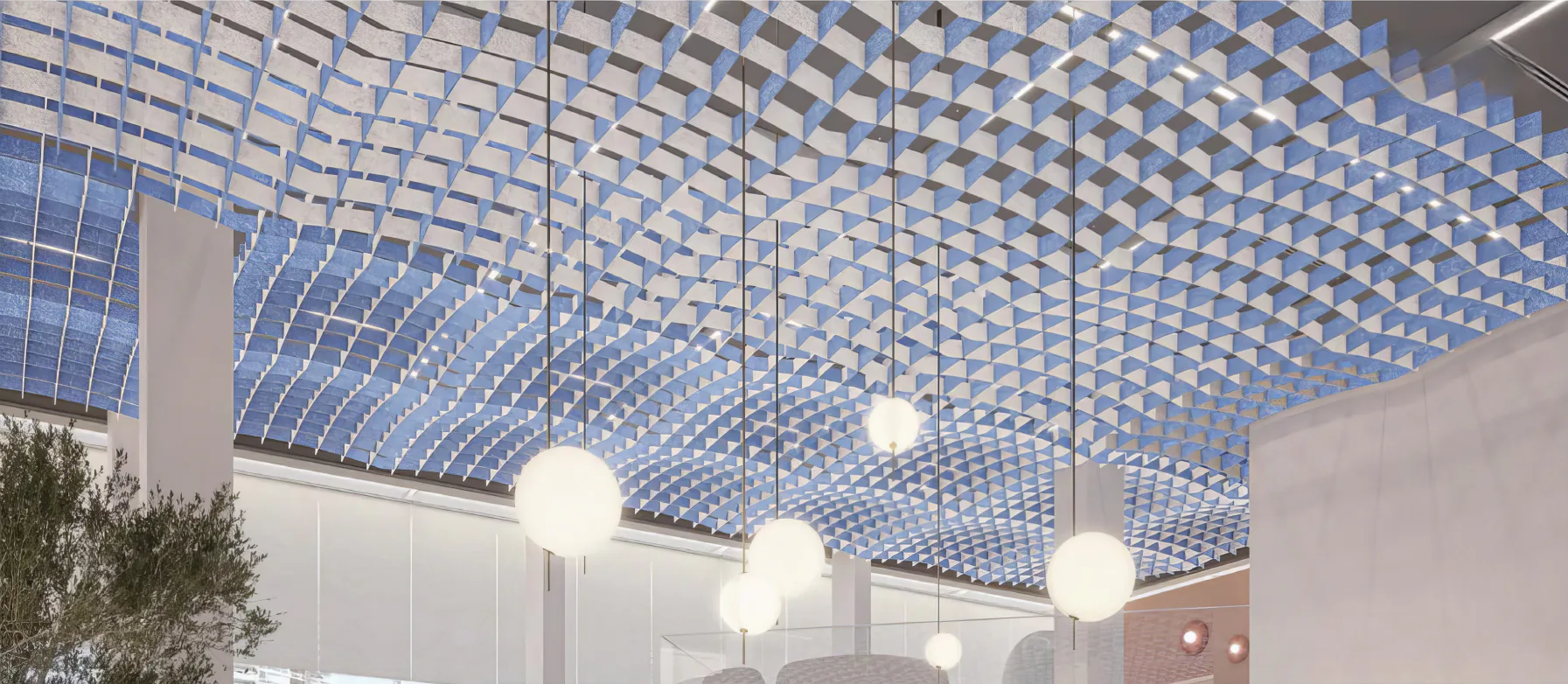

These supplier-provided visualizations show possible ceiling compositions. They are not completed RSD projects or confirmed installation details.
Supplier matching
What can be matched
RSD compares sources against the required ceiling type, visual rhythm, coverage, and service coordination.
- Element familyVertical baffles, horizontal clouds, framed rafts, discs, or interlocking grids.
- Profile and layoutStraight, tapered, peaked, wave, cellular, geometric, or custom-cut directions.
- Scale and finishModule size, spacing, visual density, color, edge, and surface direction.
- CoordinationSuspension, structure, lighting, sprinklers, HVAC, access, and perimeter conditions.
- EvidenceRequired acoustic, fire, VOC, environmental, structural, and installation documents.

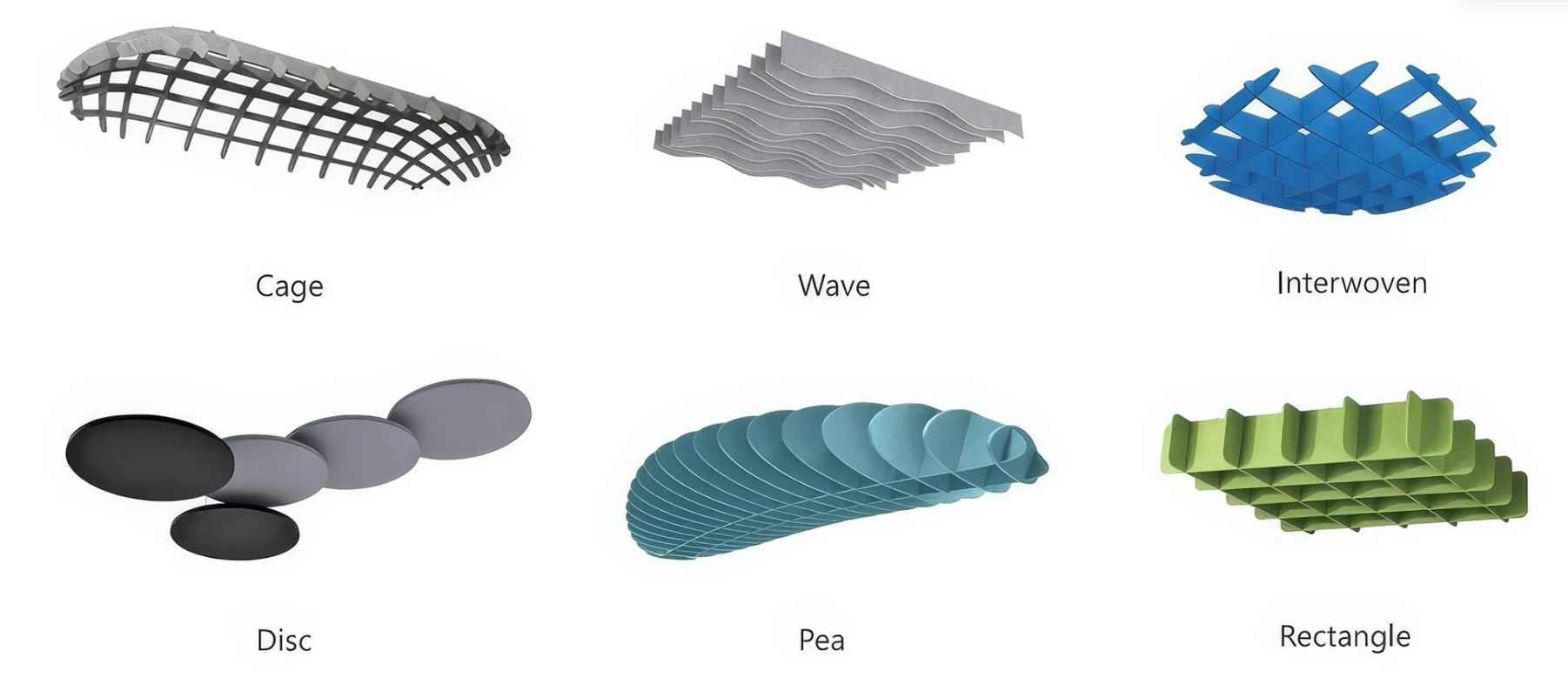

Supplier source references

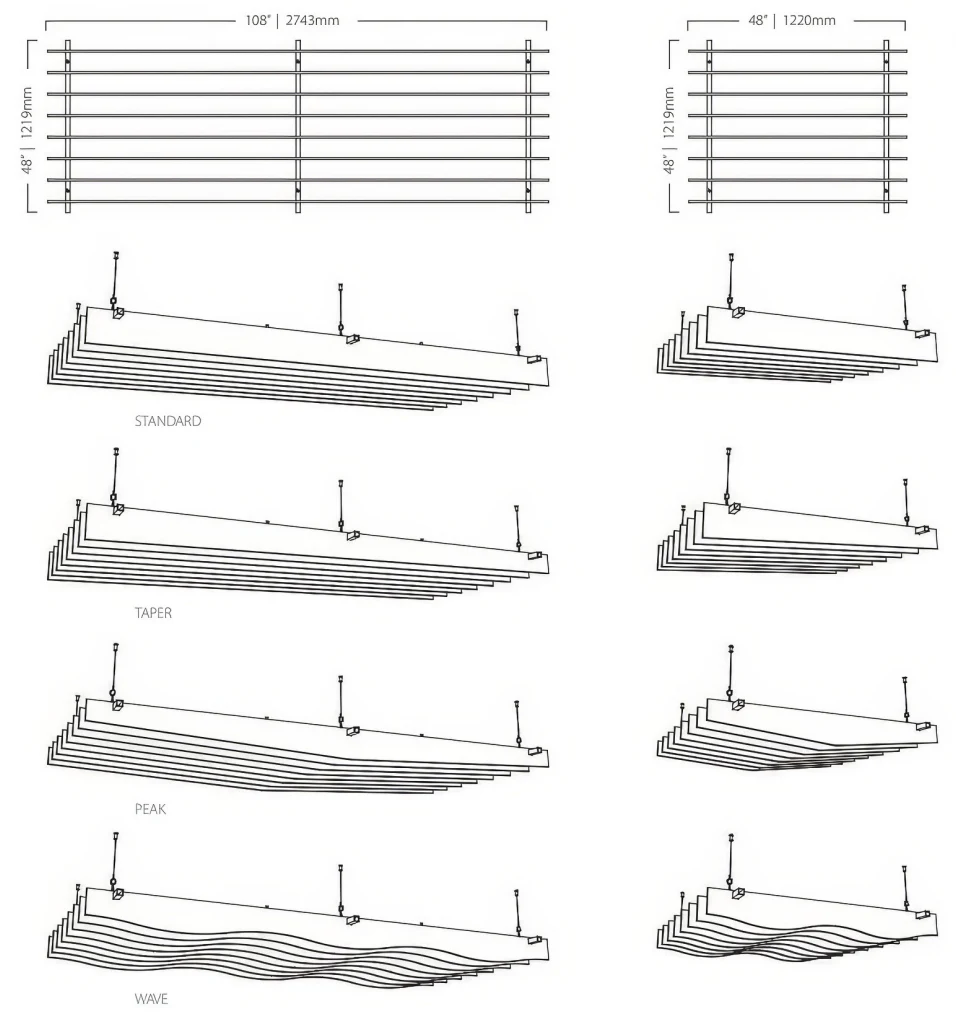

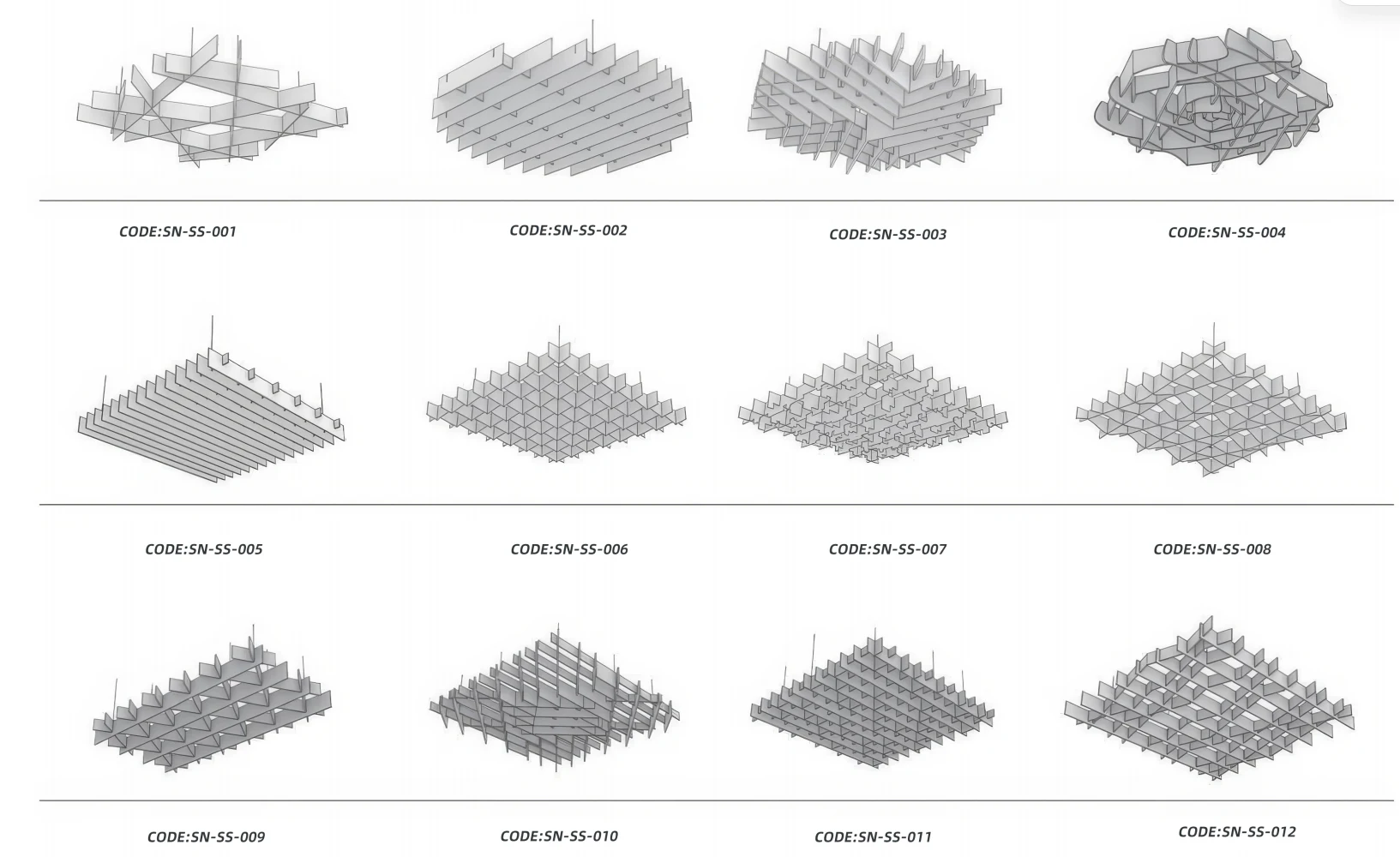

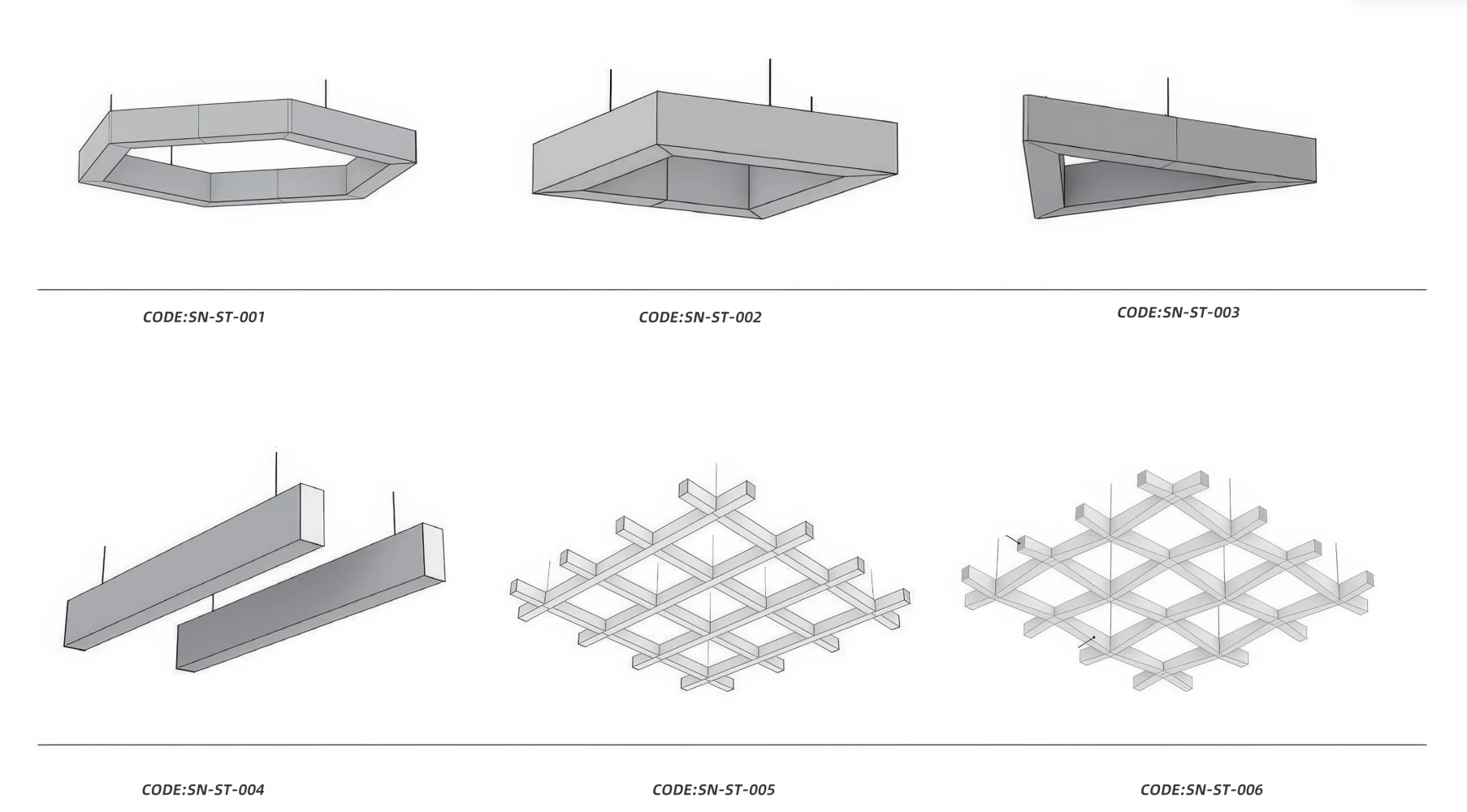

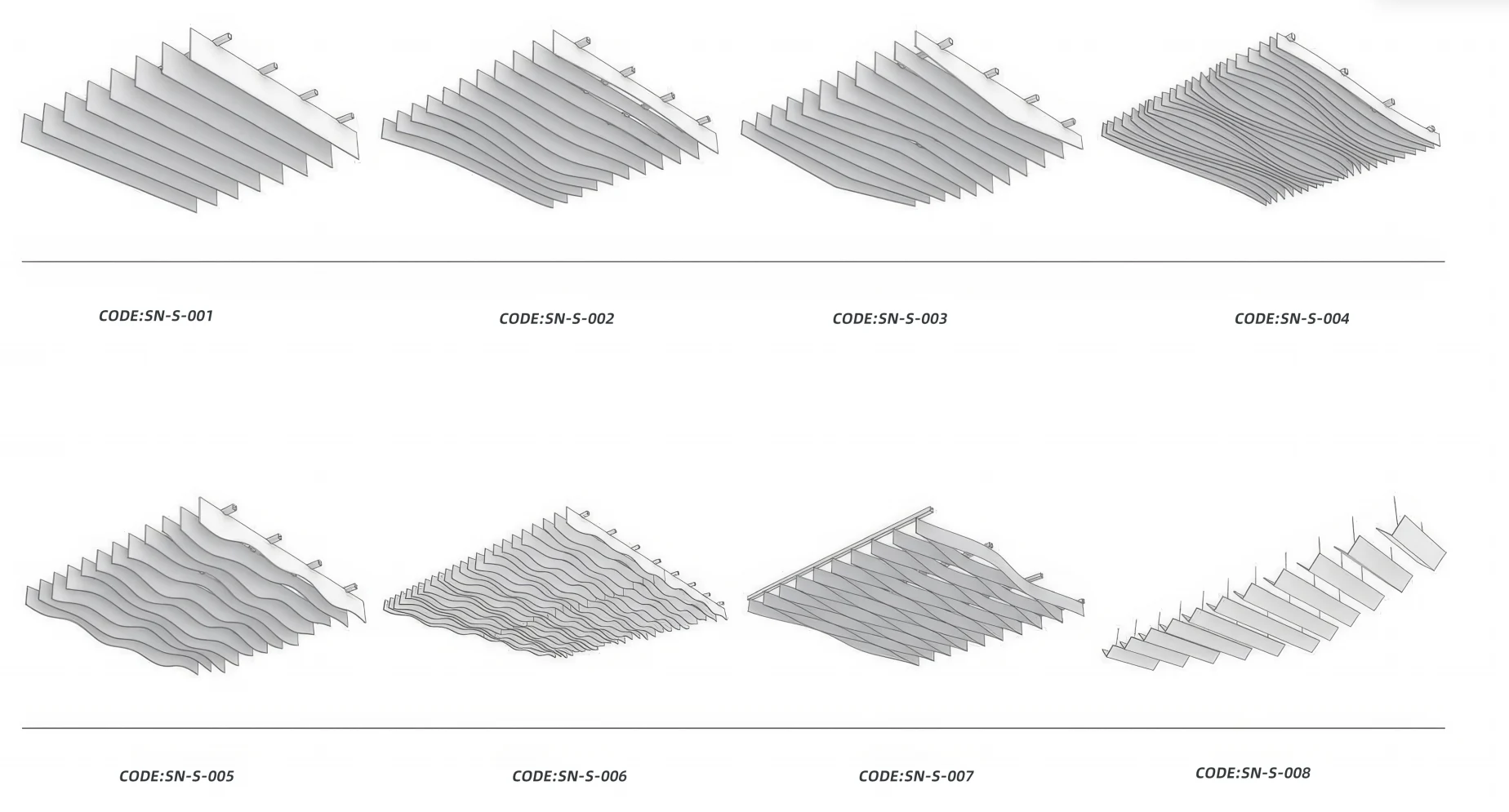

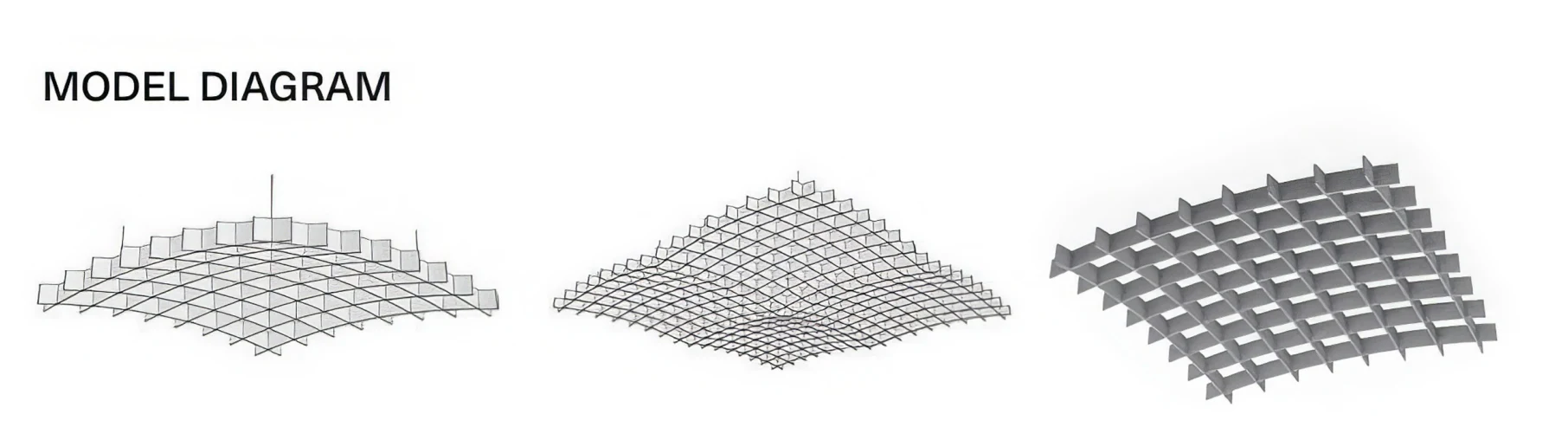

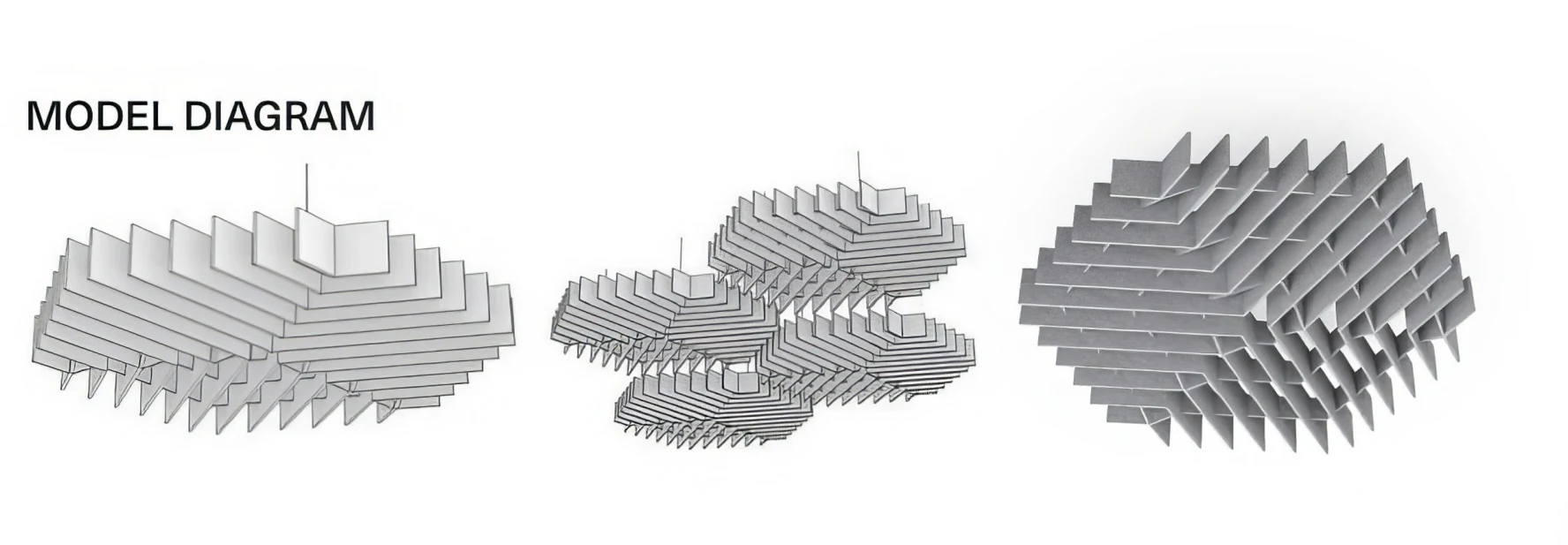

These sheets show possible forms and model families. They are not approved shop drawings, fabrication files, or universal specifications.
Order control
What RSD will confirm
Ceiling details remain provisional until the source, quoted construction, and project conditions are matched.
- SourceSelected supplier, model family, and country of manufacture.
- SpecificationPET construction, thickness, dimensions, tolerances, color, spacing, and layout.
- SuspensionComponents, attachment points, loads, seismic requirements, and service access.
- Sample and drawingsAvailability, approval reference, and project-specific drawing requirements.
- DocumentsIssuer and match to the quoted product and mounting condition.
- Commercial termsMOQ, price, lead time, packaging, freight, and destination.
What to send with your request
- Ceiling informationReflected ceiling plan, ceiling height, structure, coverage, and access zones.
- Design referencePreferred baffle, cloud, grid, disc, or sculptural direction.
- Layout needsDimensions, color, spacing, visual density, and service coordination.
- Order needsQuantity, required documents, target price, date, and destination.
Documents available by request
Availability is checked after a suitable supplier and construction are matched. Files identify the actual issuer.
Samples and colors
Physical material samples and color references are coordinated with the selected supplier.
Technical data sheets
Supplier or manufacturer sheets are matched to the quoted baffle or cloud construction.
Fire and acoustic reports
Reports must match the named manufacturer, PET construction, and mounting condition.
CAD, BIM, and installation
Supplier drawings, models, suspension information, and guides are provided when available.
